TMEZ-KC series multi-head cylinder type embroidery machines are equipped with Tajima's latest and most advanced technologies. AI embroidery machine. i-TM+DCP. Tajima embroidery machines. As the official Tajima distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.
The need to adjust the upper thread tension according to the stitch, design, or material, as is done by skilled operators on conventional embroidery machines, is no longer necessary. The reason is that Tajima’s Digitally Controlled Presser foot (DCP) measures fabric thickness with each stitch, and its AI technology, Intelligent Thread Management (i-TM), automatically supplies the right amount of upper thread for different fabric thicknesses and stitches in just 0.05 seconds. In addition, DCP suppresses fluttering and enables stable sewing.
It is used by leading brands and fashion houses. They yield a beautiful finish, regardless of whether you are using a satin stitch, a running stitch, or a fill stitch. What’s more, a variety of options for sequins and beads enables additional forms of expression. Beautiful and exquisite embroidery with multi-head technology in which all heads are synchronized.

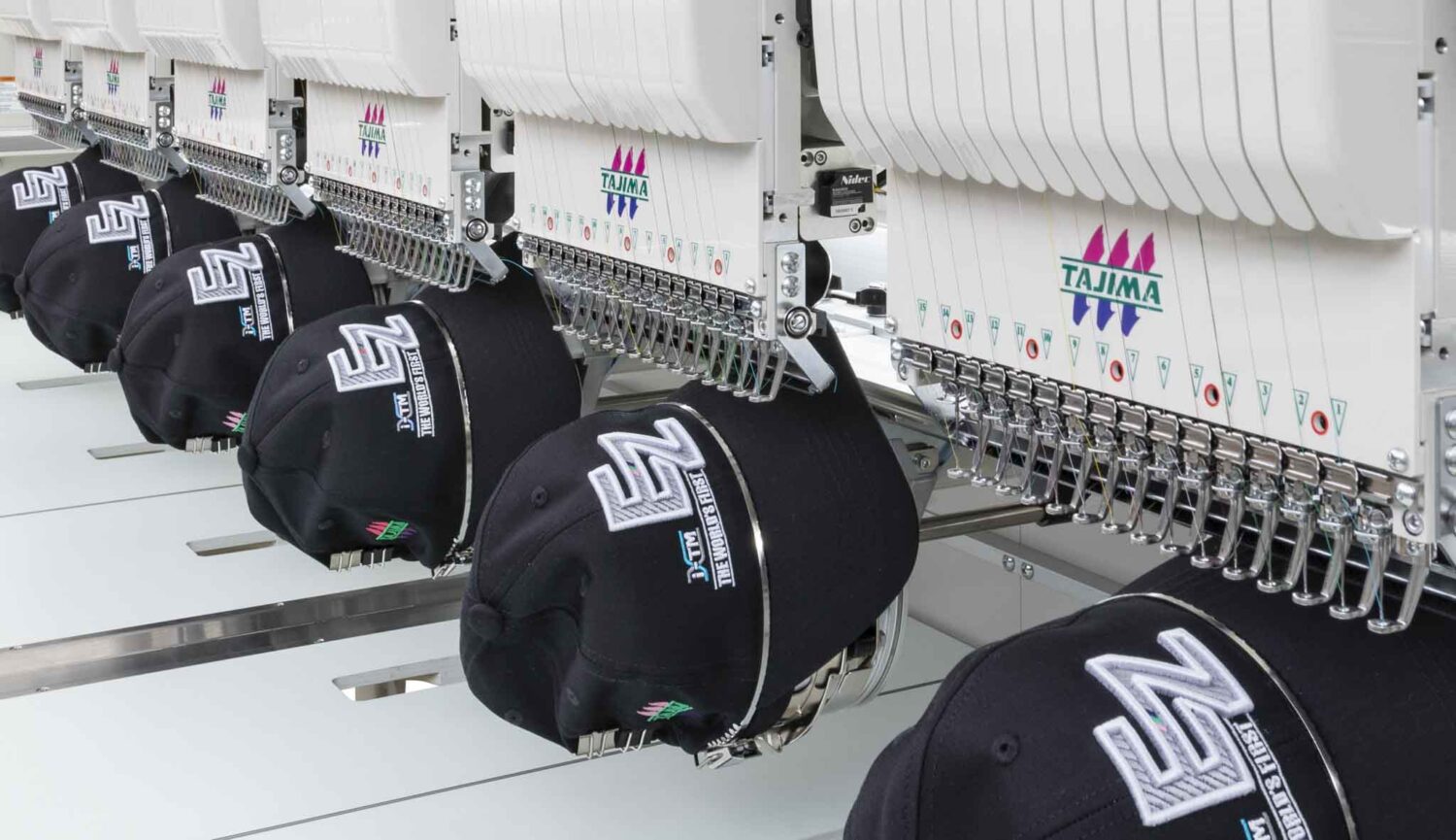

Large-diameter shaft makes it easy for anyone to install the cap frame. Three-point locking between the drive ring and cap frame provides more stable fixation, less needle breakage and pattern misalignment, and operation at a maximum speed of 1,000 rpm.
In addition to i-TM and DCP, the machine offers a wide variety of operator-friendly functions and options. This reduces operator workload while ensuring high quality embroidery production and smooth machine operation.
Click here for a list of other embroidery frames.
Even if the item to be embroidered or thread type changes frequently, such as an in-store order, the embroidery machine will always provide the best possible stitches without having to change settings.
| Needles | Multi color head | Head interval | Embroidery field （D×W） | Overall Width | Depth | Height | |||
|---|---|---|---|---|---|---|---|---|---|
| Border Frame | Wide Cap Frame | Semi-wide Cap Frame | Tubular Frame | ||||||
| 9/12/15 | 2 | 500 | 450×500 mm 17.7×19.6 inch | 75×360 mm 2.9×14.1 inch | 83×180 mm 3.2×7.0 inch | 439×419 mm 17.2×16.5 inch | 2,260 mm 88.9 inch | 1,355 mm 53.3 inch | 1,730 mm 68.1 inch |
| 9/12/15 | 4 | 360 | 450×360 mm 17.7×14.1 inch | 75×360 mm 2.9×14.1 inch | 83×180 mm 3.2×7.0 inch | 439×279 mm 17.3×10.9 inch | 2,560 mm 100.7 inch | 1,355 mm 53.3 inch | 1,730 mm 68.1 inch |
| 9/12/15 | 4 | 500 | 450×500 mm 17.7×19.6 inch | 75×360 mm 2.9×14.1 inch | 83×180 mm 3.2×7.0 inch | 439×419 mm 17.3×16.5 inch | 3,260 mm 128.3 inch | 1,355 mm 53.3 inch | 1,740 mm 68.5 inch |
| 9/12/15 | 6 | 360 | 450×360 mm 17.7×14.1 inch | 75×360 mm 2.9×14.1 inch | 83×180 mm 3.2×7.0 inch | 439×279 mm 17.3×10.9 inch | 3,280 mm 129.1 inch | 1,355 mm 53.3 inch | 1,740 mm 68.5 inch |
| 9/12/15 | 6 | 500 | 450×500 mm 17.7×19.6 inch | 75×360 mm 2.9×14.1 inch | 83×180 mm 3.2×7.0 inch | 439×419 mm 17.3×16.5 inch | 4,260 mm 167.7 inch | 1,355 mm 53.3 inch | 1,740 mm 68.5 inch |
| 9/12/15 | 8 | 360 | 450×360 mm 17.7×14.1 inch | 75×360 mm 2.9×14.1 inch | 83×180 mm 3.2×7.0 inch | 439×279 mm 17.3×10.9 inch | 4,000 mm 157.4 inch | 1,355 mm 53.3 inch | 1,740 mm 68.5 inch |
| 9/12/15 | 8 | 500 | 450×500 mm 17.7×19.6 inch | 75×360 mm 2.9×14.1 inch | 83×180 mm 3.2×7.0 inch | 439×419 mm 17.3×16.5 inch | 5,260 mm 207.0 inch | 1,355 mm 53.3 inch | 1,740 mm 68.5 inch |
* Specifications are indicative. Contact us for full datasheets (needle count, head count, embroidery field and speed) and current availability.
