The technology of industrial embroidery machines enables punching with an accuracy of 0.1mm. The dregs are sucked out by air to minimize clogging. The wide processing field of up to 1,000 mm (40 inches) (D) x 1,200 mm (48 inches) (W), enables processing of large products such as car seats and furniture, as well as a wide range of designs. Combined with HAR, a multi-function sewing machine specialized for multi-color sewing and embroidery, it can create high-precision hole punching and quilt lines with minimal downtime.

Committing the designer's imagination—just as it is—to data

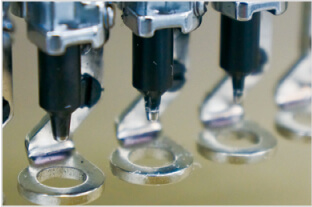

There are 4 types of perforator needles available (dia. 0.8mm, 1.0mm, 1.5mm and 2.0mm).

“DG-S” design creation software can convert Illustrator and CAD data into perforation and sewing data, allowing designers to create patterns without limiting their imagination. Furthermore, creating patterns from data significantly reduces the cost and time that would be required for conventional mold manufacturing. It can also be adapted to small-lot production, where greater variety is required. *DG-S design creation software is optional.

In addition to four types of circular ponces ranging from 0.8 mm to 2.0 mm, an elliptical ponces is available to expand the range of designs. By using an elliptical ponce together with a precision gauge, the orientation of the hole can be rotated slightly, expanding the range of design expression.
