Matsuya M-172🧶
MATSUYA · Japan
M-172
Wide-Bed Computerized Collar Flat Knitting Machine — 68"/80" Needle Bed
🧶 Flat Knitting — Collar & Cuff

The M-172 (official designation M-172/203SJT) is Matsuya’s wide-bed computerized collar flat knitting machine with a 68-inch or 80-inch needle bed, available in 10G, 12G, 14G, 16G and 18G gauges. The wide bed knits more collars per carriage pass, raising productivity for high-volume trim production, while the single knitting system runs at up to 1.3 m/s with full and semi jacquard patterning for collars, hems, plackets and cuffs. As the official Matsuya distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.

Select Model
Download Catalogue
Extra-Wide 68
Extra-Wide 68"/80" Needle Bed

The widest bed in the Matsuya collar range knits more pieces per carriage pass, multiplying output for high-volume collar and trim production.

Collar, Hem, Placket & Cuff Knitting
Collar, Hem, Placket & Cuff Knitting

Official application range: collars, hems, chest plackets and cuffs, with full and semi jacquard patterning for complex multi-colour designs.

Five Gauge Options (10G–18G)
Five Gauge Options (10G–18G)

Available in 10G, 12G, 14G, 16G and 18G needle gauges, covering coarse to fine knit structures on the same platform.

🧶
Up to 1.3 m/s Carriage Speed

The single-system carriage runs at up to 1.3 metres per second — combined with the wide bed, the highest-output collar machine in the range.

SpecificationValue
BrandMatsuya
ModelM-172 (official designation M-172SJT / M-203SJT)
TypeWide-bed computerized collar flat knitting machine
Gauges10G / 12G / 14G / 16G / 18G
Knitting width68-inch (M-172SJT) / 80-inch (M-203SJT)
Knitting speedMax. 1.3 m/s
Drive mechanismInverter system, 0.37 kW motor, 220V single-phase
RackingStepping motor control; 1
Cam systemTwin carriages, single cam system (double-cam drive, tandem drive)
Take-down rollerControlled by torque motor
ControlComputer control
Stop motionYarn breakage, knot, fabric fall, needle breakage
Data inputDirect input & USB
Needle selectionHigh butt / all butt
Jack2 steps (each high butt / all butt)
Strokes1 large stroke & 2 small strokes
Option devicesMemminger stand, Memminger EFS620 head set
ApplicationsCollars, hems, plackets, cuffs
JacquardFull & semi jacquard

* Specifications subject to change. Contact us for detailed datasheets.

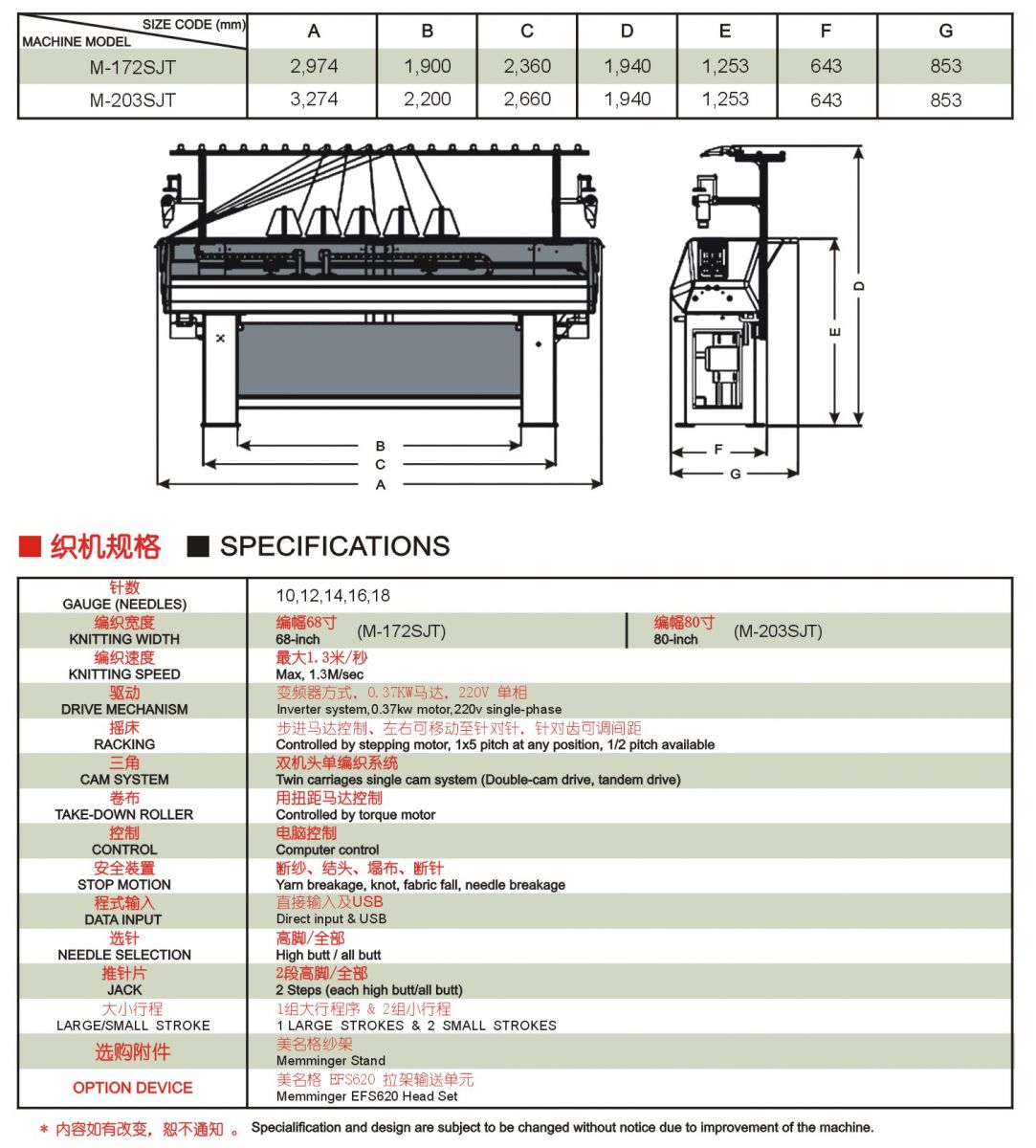

Official Matsuya Specification Sheet — M-172
Matsuya M-172 official specification sheet
🌐
