JUKI MF7500 U11
JUKI
MF7500 U11
Flat-Bed, Top & Bottom Coverstitch Machine — Universal Type
🧵 Sewing — Coverstitch

Universal type coverstitch — versatile configuration for general hemming and seaming. The JUKI MF7500 U11 is a Flat-Bed, Top & Bottom Coverstitch Machine — Universal Type built for industrial production. As the official JUKI distributor in Egypt, Moussa Egypt supplies this machine with installation, operator training and full after-sales support.

Download Catalogue
U11 Universal type (basic type)
U11 Universal type (basic type)

The machine can be used for the hemming process of the sleeves and bottoms of T-shirts and for the covering process for sportswear and knitwear. The front cover is trimmed to allow operators to bring their hands closer near the needle entry area, thereby increasing work efficiency in the covering process, etc.

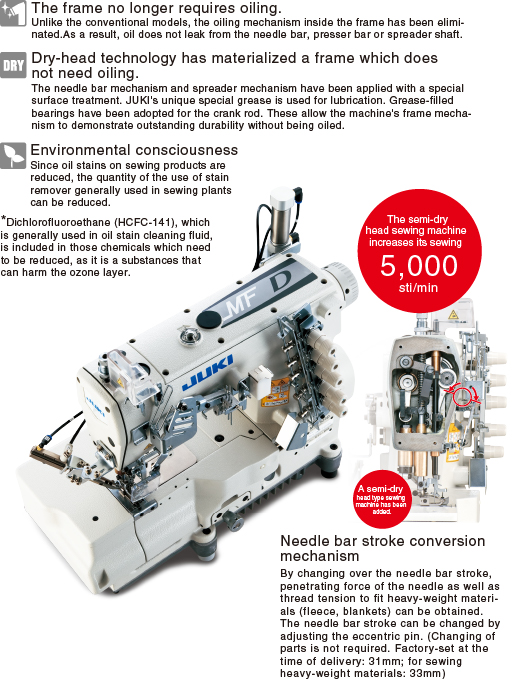

JUKI's dry-head technology protects sewing products from being stained with oil
JUKI's dry-head technology protects sewing products from being stained with oil

With the excellent functions inherited from the MF-7500 Series, the MF-7500D is provided with a dry frame mechanism to eliminate the cause of oil stains. Stain removing work or re-sewing work is substantially reduced by protecting sewing products from being stained with oil, thereby improving the quality of finished products.

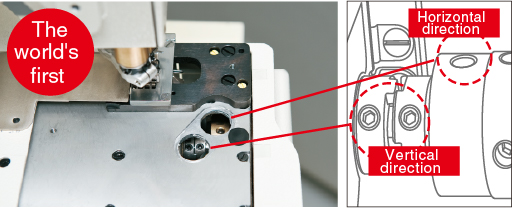

Thanks to the new feed mechanism, many different types of sewing are achieved
Thanks to the new feed mechanism, many different types of sewing are achieved

The feed locus can be adjusted externally. The feed locus is now adjustable in terms of the vertical direction and horizontal direction, thereby improving responsiveness to sewing materials.

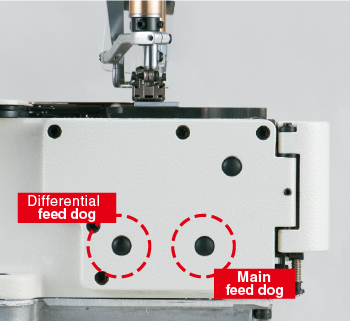

Feed longitudinal position adjustment mechanism
Feed longitudinal position adjustment mechanism

The longitudinal position of the feed is adjustable. As a result, uneven material feed and puckering that are likely to occur when sewing products made of elastic materials such as foundations are reduced. This means that the machine promises improved responsiveness to elastic materials.

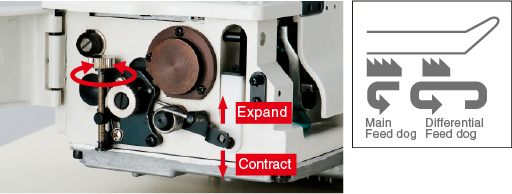

Differential-feed micro-adjustment mechanism
Differential-feed micro-adjustment mechanism

It is possible to finely adjust the differential feed amount to a best-suited value for the material to be used. The differential feed ratio is constant even if the stitch length is changed.

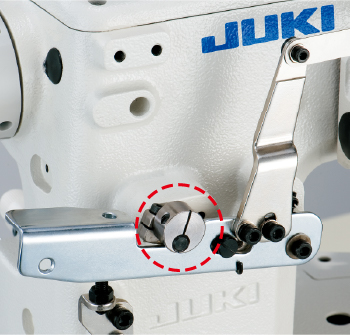

Micro-lifter mechanism
Micro-lifter mechanism

Elastic material or delicate material can be sewn with the presser foot kept slightly raised. This effectively helps reduce the degree of slippage, warpage and damage of the material.

SpecificationMF-7500 seriesMF-7500D series
Stitch type2-needle/3-needle/4-needle top and bottom covering stitch2-needle/3-needle/4-needle top and bottom covering stitch
NeedleUY128GAS (#10S) #9S~#12SUY128GAS (#10S) #9S~#12S
Lift of the presser foot5mm (with top and bottom covering stitch), 8mm (with bottom covering stitch)5mm (with top and bottom covering stitch), 8mm (with bottom covering stitch)
Stitch pitch adjustmentBy dialBy dial
Differential feed adjustmentBy micro-adjustment mechanismBy micro-adjustment mechanism
LubricationAutomatiacAutomatiac
Lubricating oilJUKI Machine Oil 18 (equivalent to ISO VG18)JUKI Machine Oil 18 (equivalent to ISO VG18)
Feed dog inclination adjustmentProvided as standardProvided as standard
Micro-lifterProvided as standardProvided as standard
Needle bar stroke converting functionProvided as standard: 31mm: at the time of delivery / When sewing a heavy-weight material: 33mmProvided as standard: 31mm: at the time of delivery / When sewing a heavy-weight material: 33mm
Silicon oil tank for needle tip and needle threadProvided as standardProvided as standard
Cartridge oil filterProvided as standardProvided as standard
Power requirementSingle-phase 100~120V / 200~240V, 3-phase 200~240V (with automatic thread trimmer)Single-phase 100~120V / 200~240V, 3-phase 200~240V (with automatic thread trimmer)
Power consumption500VA (with automatic thread trimmer)500VA (with automatic thread trimmer)

* Specifications subject to change without notice. Contact us for the latest information.

📄
