JUKI

DLN-9010A

High-Speed Needle-Feed 1-Needle Lockstitch Machine

🧵 Sewing — Lockstitch (Needle Feed)

The DLN-9010A features a synchronized needle-feed mechanism where the needle moves in unison with the feed dog, carrying the fabric forward as the needle enters it. This eliminates differential slippage between fabric layers — the leading cause of pattern misalignment on stripes, checks and plaids. Direct-drive technology, an automatic thread trimmer and JUKI's compact integrated control box complete a machine built for high-volume, precision garment production.

Download Catalogue

Ask on WhatsApp

📄 PDF Catalogue 📖 Manual 🔩 Spare Parts 🎓 Training Available

🎯

The machine no longer uses an oil pan

With this oil pan-less structure, the machine helps create a clean work environment

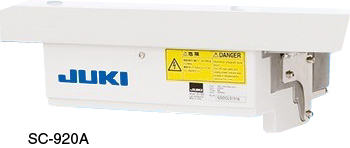

The new model control box, which energy-saving mode is provided (SC-920A)

The new model control box SC-920A, which consists of an energy-saving mode, has been developed. This control box is the first one which provides an energy-saving mode for the sewing machine. The power consumption during standby, when the motor is at rest, is reduced by approximately 20%.

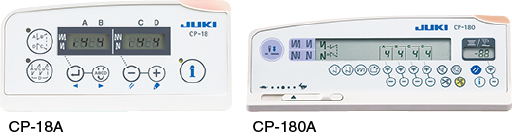

The operation panel can be selected according to the process (CP-18A,CP-180A)

Two different operation panels, the CP-18A and CP-180A are applicable to the DLN-9010A. Both operation panels are provided with the production support function. The production support function actually consists of three different functions (six different modes)

Specification	DLN-9010A
Application	Striped, plaid and difficult-to-match fabrics; light to medium weight
Max. Sewing Speed	4,000 sti/min
Max. Stitch Length	5 mm
Presser Foot Lift	By hand: 5.5 mm / By knee: 13 mm
Feed System	Needle feed + lower feed dog
Needle Type	DB × 1 (Nm 75–110)
Thread Trimmer	Automatic
Drive Type	Direct-drive servomotor
Power Consumption	210 VA
Machine Head Weight	approx. 37 kg

* Specifications subject to change without notice.
